How to integrate Box using MCP

Browse and search Box content. This guide creates an MCP server from Arthur's Box template — tools preconfigured against https://api.box.com/2.0 — and finishes by sharing the server's MCP swagger documentation.

Steps

  1. Open the Secrets vault and create a secret named BOX_API_KEY holding your access token. Create a Box app, complete OAuth 2.0 (or Client Credentials Grant for server-to-server access), and send the resulting access token as Authorization: Bearer .

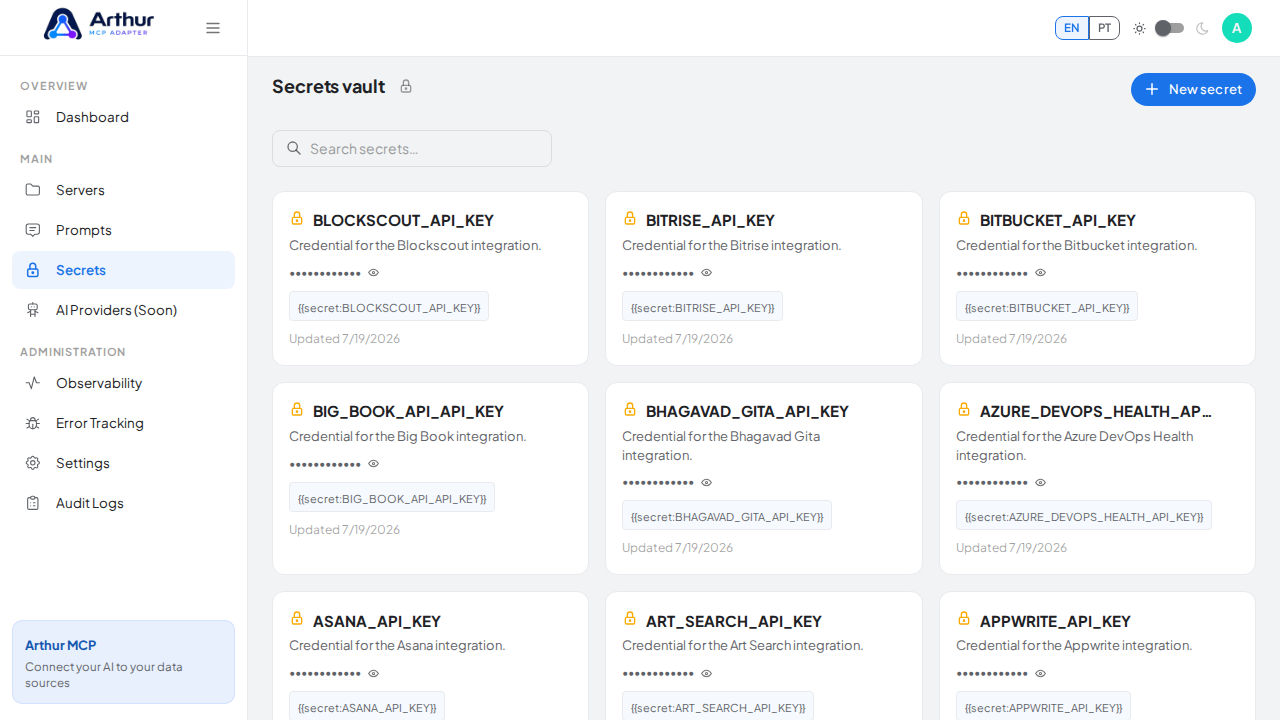

    Open the Secrets vault to store the Box credential before using the template

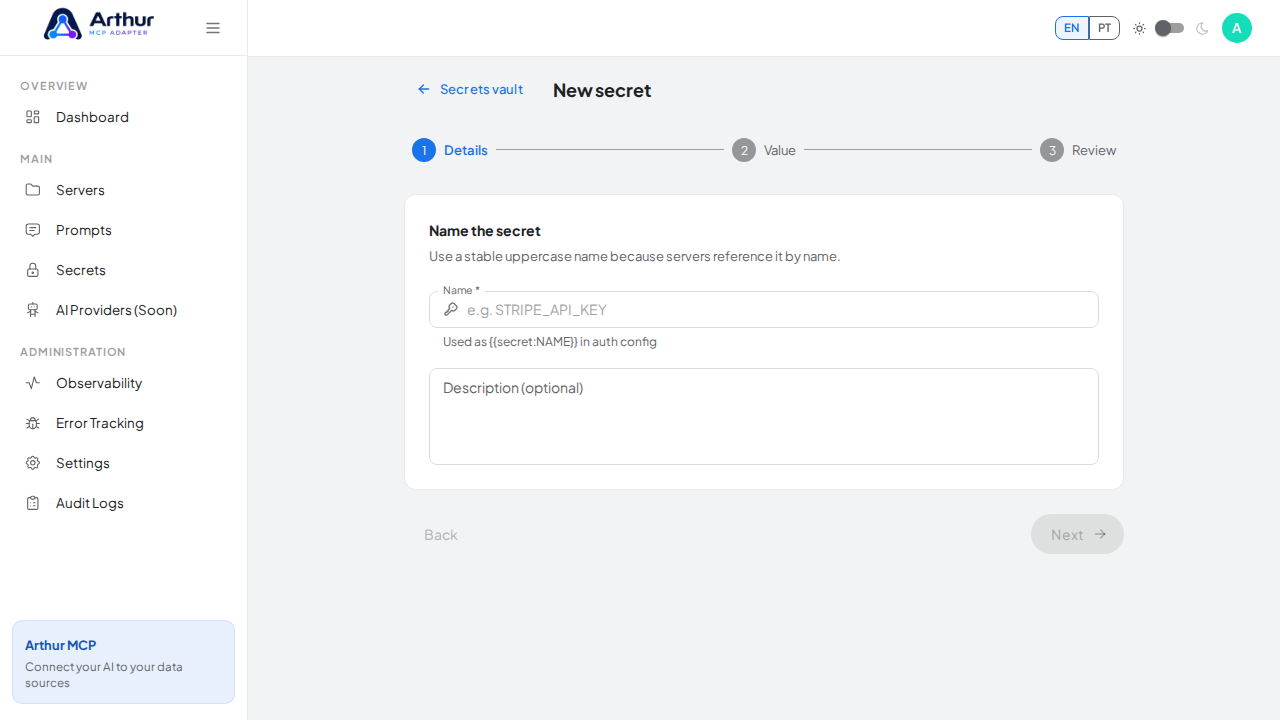

    Start the New secret wizard

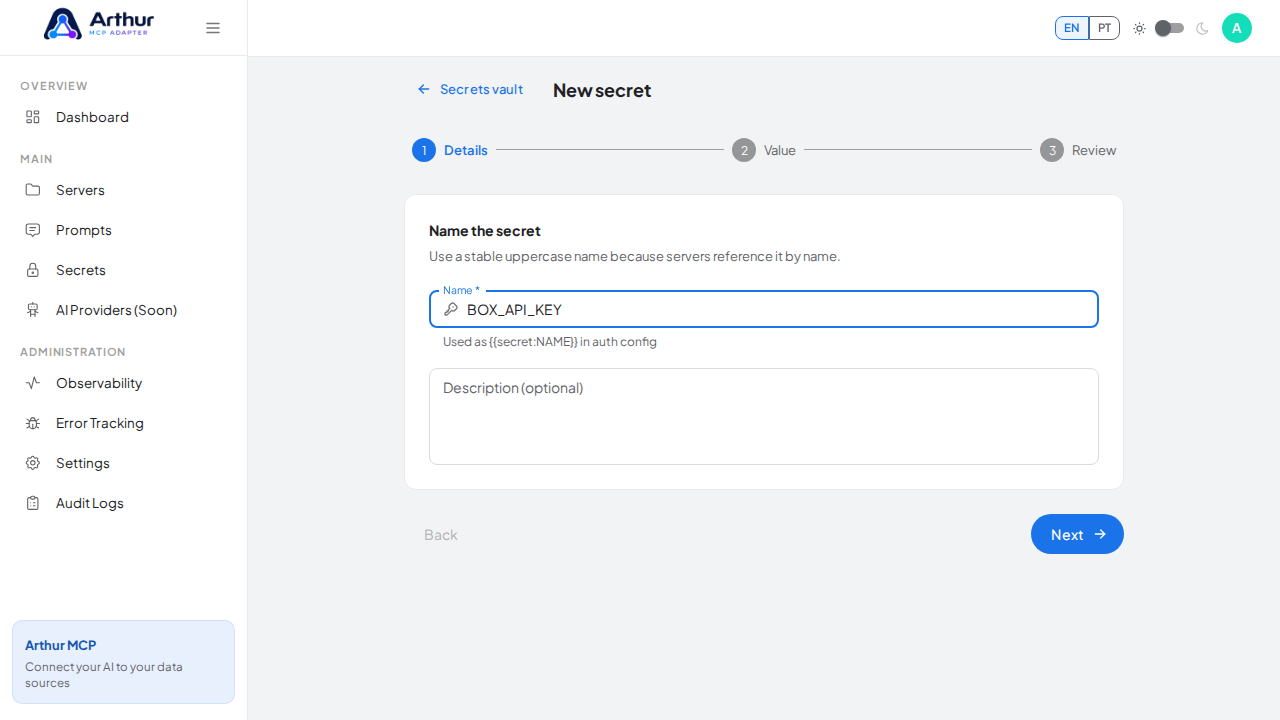

    Name the secret BOXAPIKEY — servers reference it by this name

  2. Go to the REST API Templates gallery and search for Box.

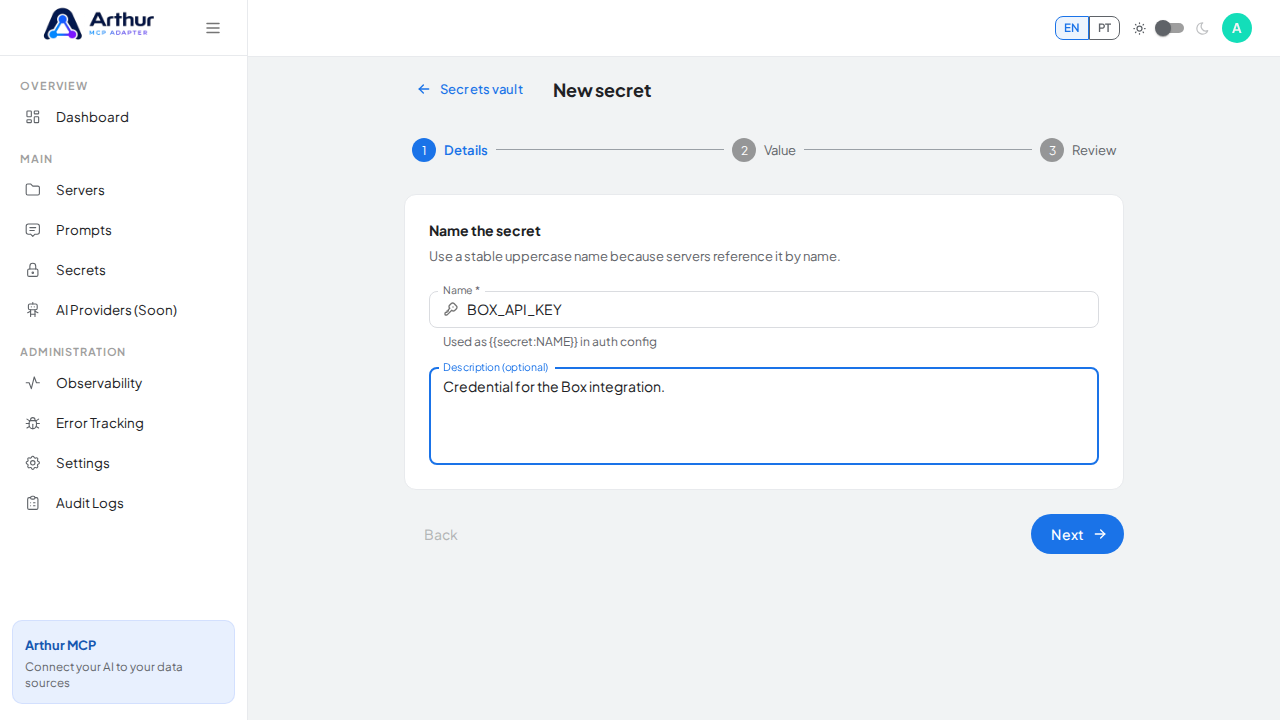

    Record what the credential is for so it stays recognizable

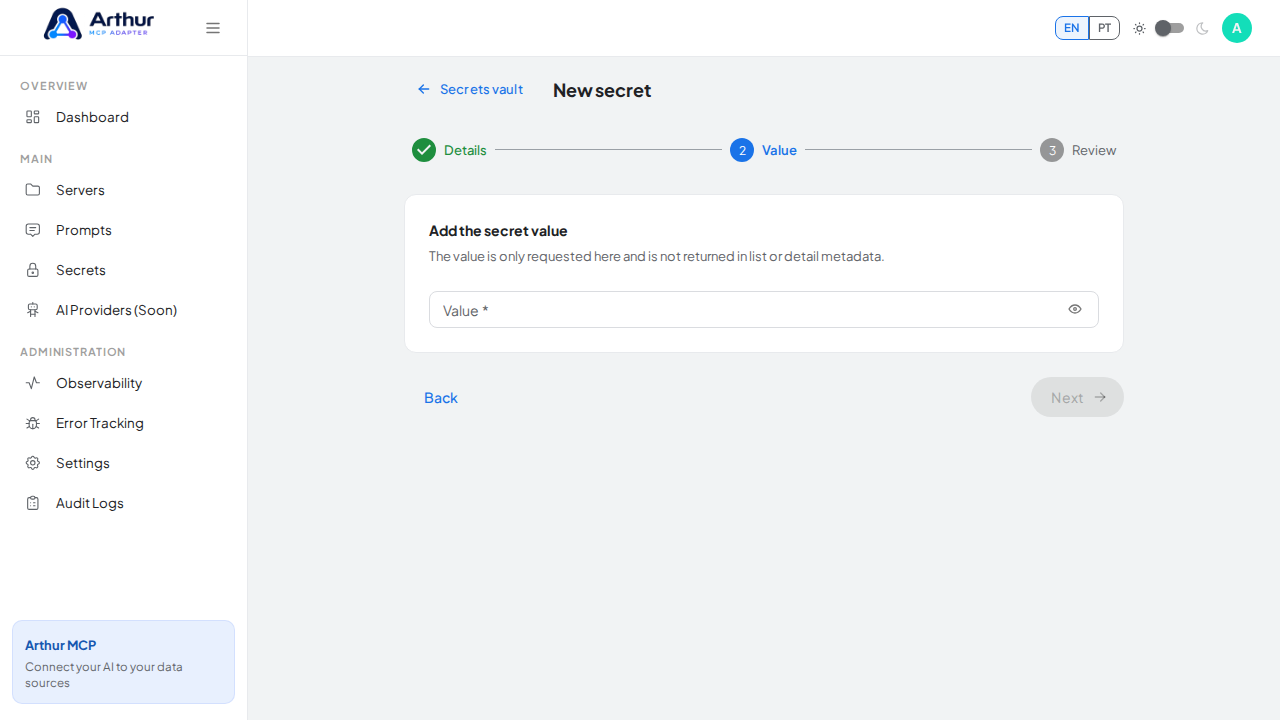

    Continue to the protected value step

  3. Click Use template on the Box card to open the server-creation dialog.

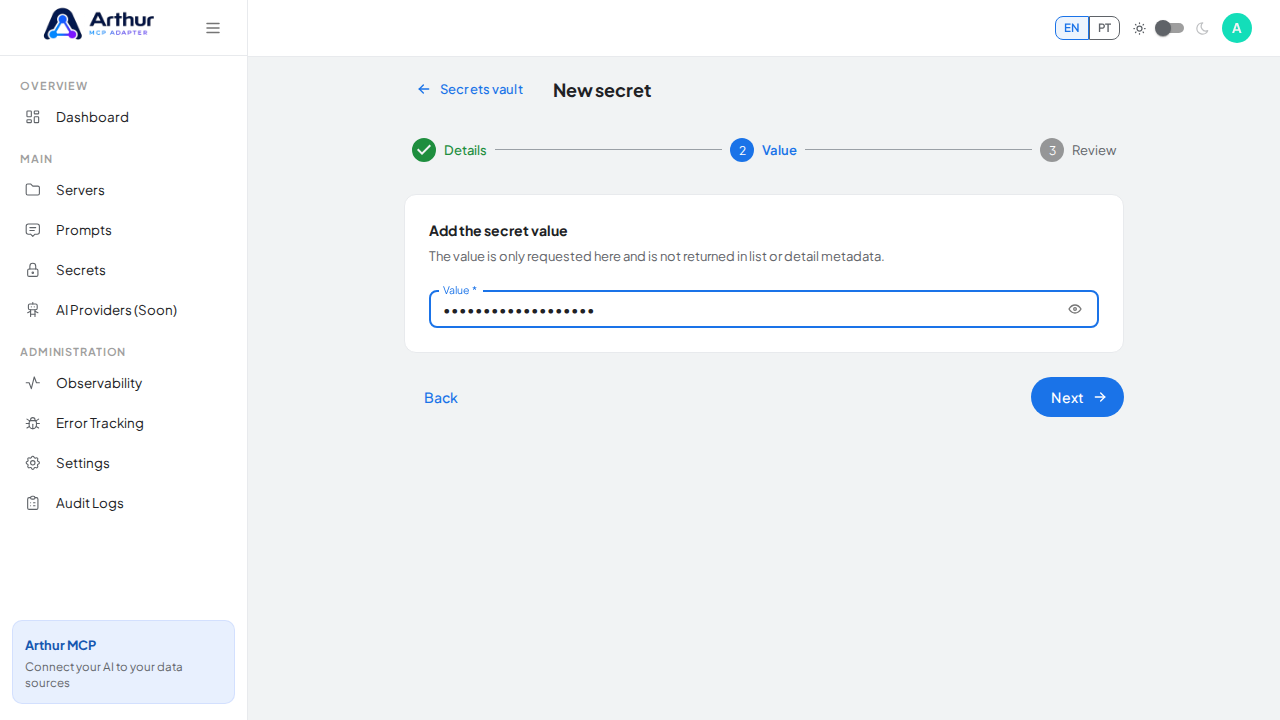

    Enter the credential value — a demo value here; use your real key when adopting the integration

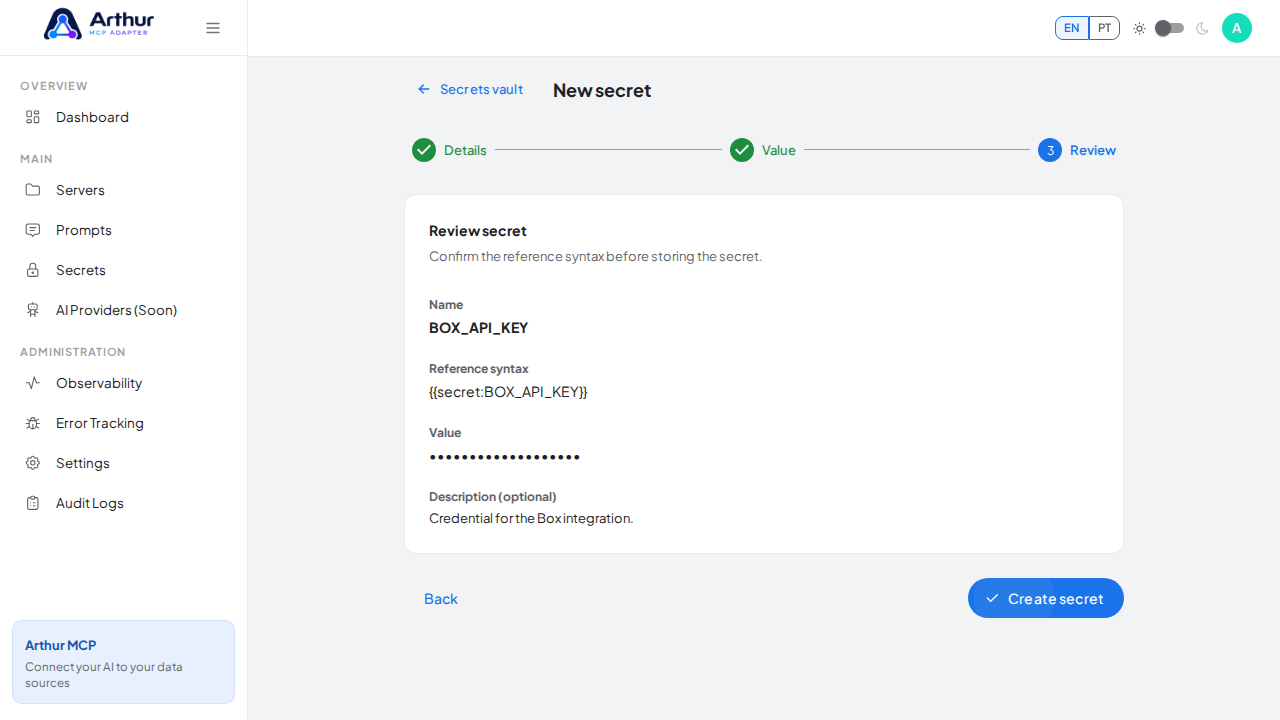

    Review the generated secret reference syntax

  4. Review the server name and select BOX_API_KEY in the credential field — the dialog only accepts vault secrets, and it lists every tool that will be created.

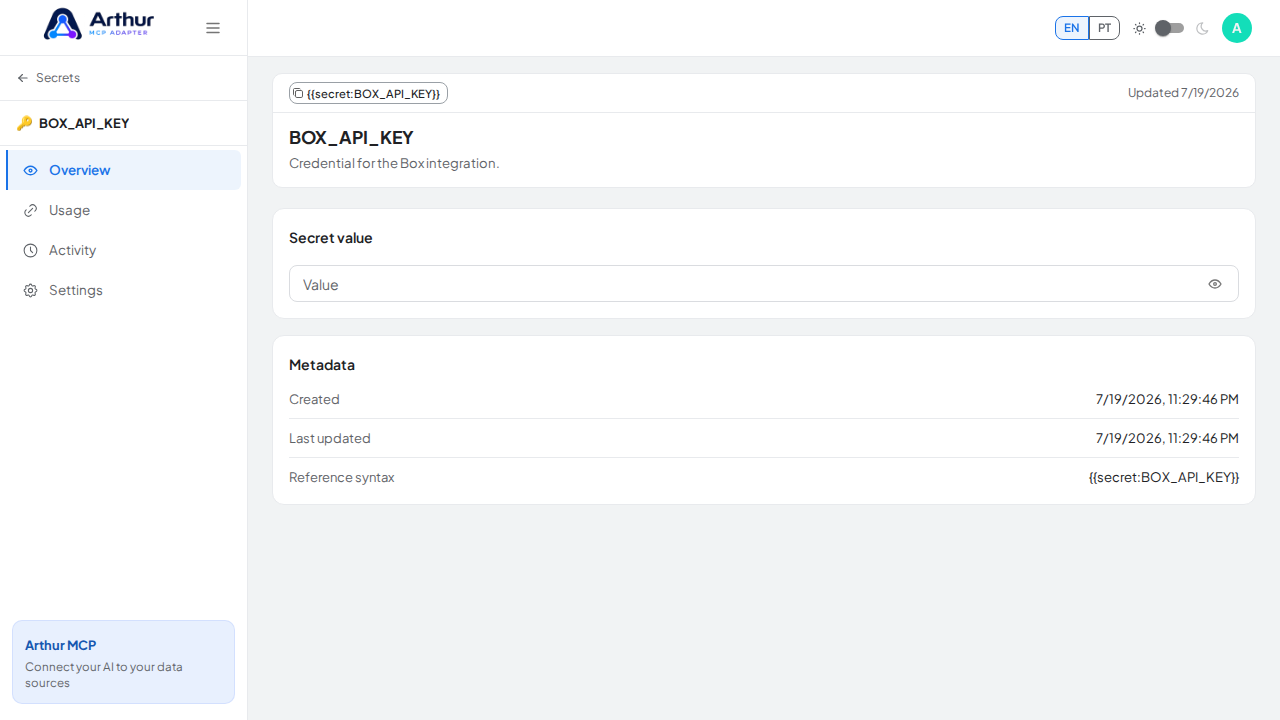

    Store the BOXAPIKEY secret in the vault

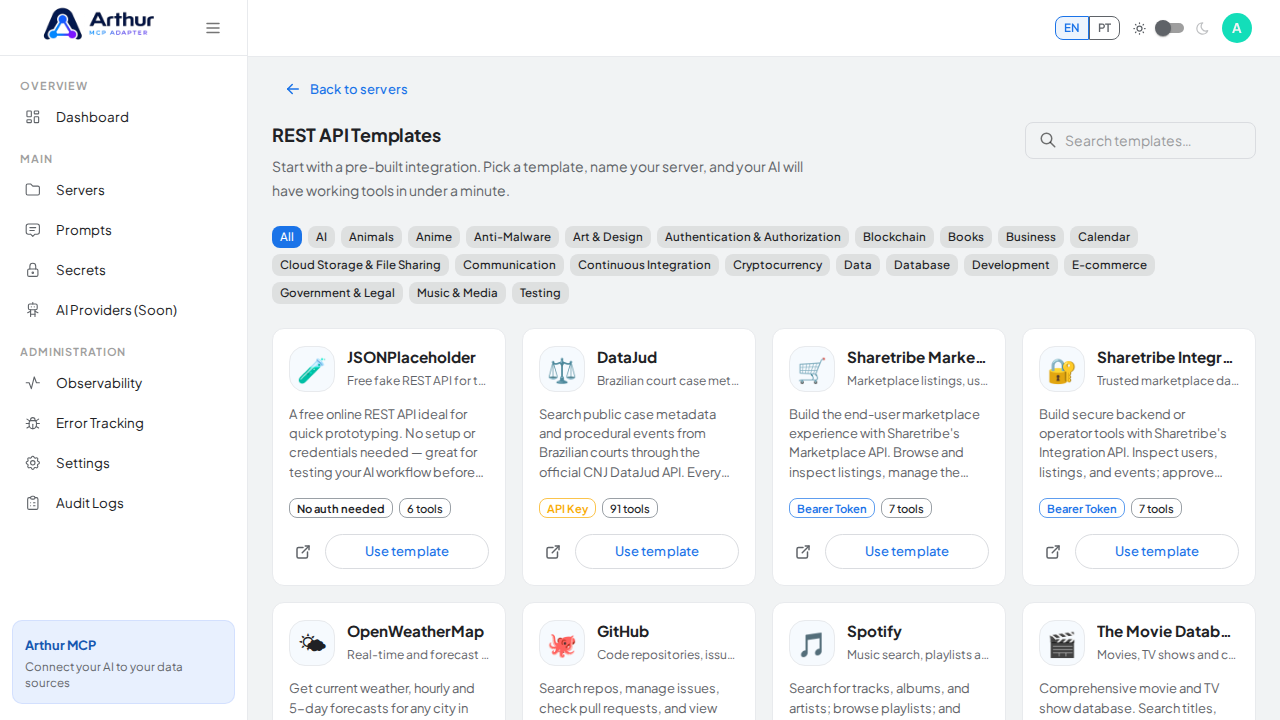

    Open the REST API template gallery

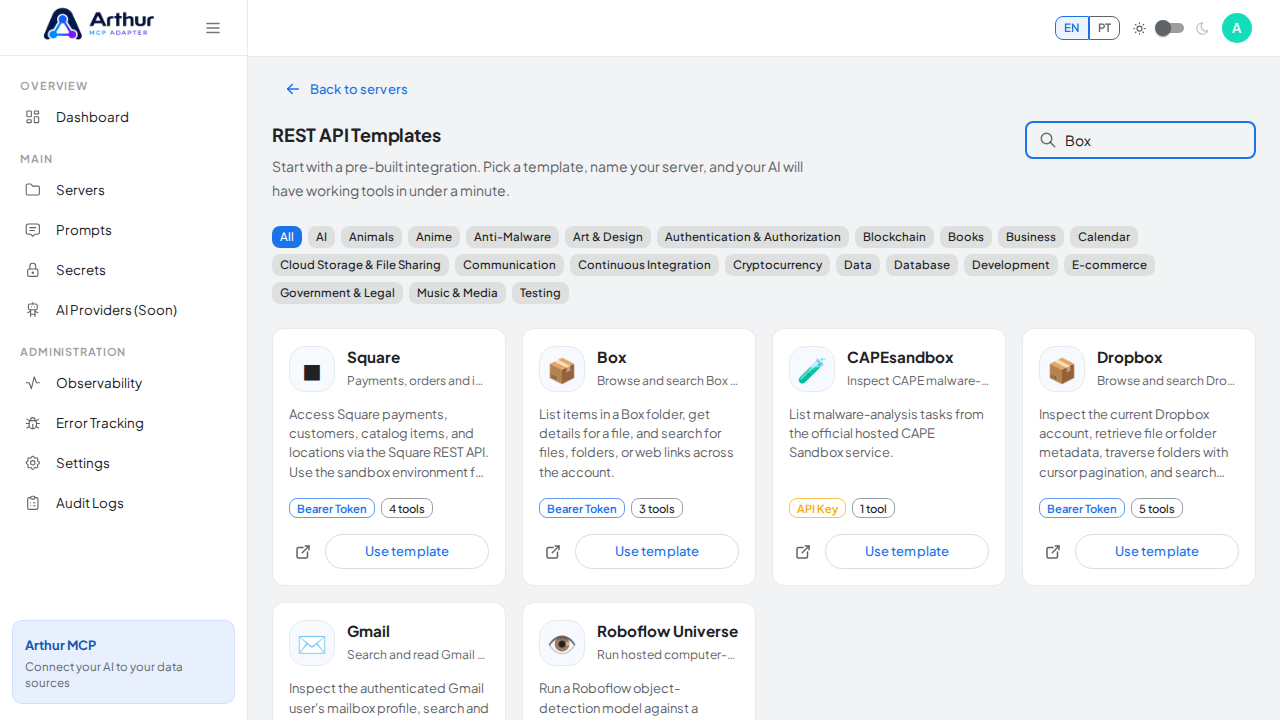

    Search the gallery for the Box integration

  5. Click Create server. Arthur creates the server, applies the authentication, and generates all the tools.

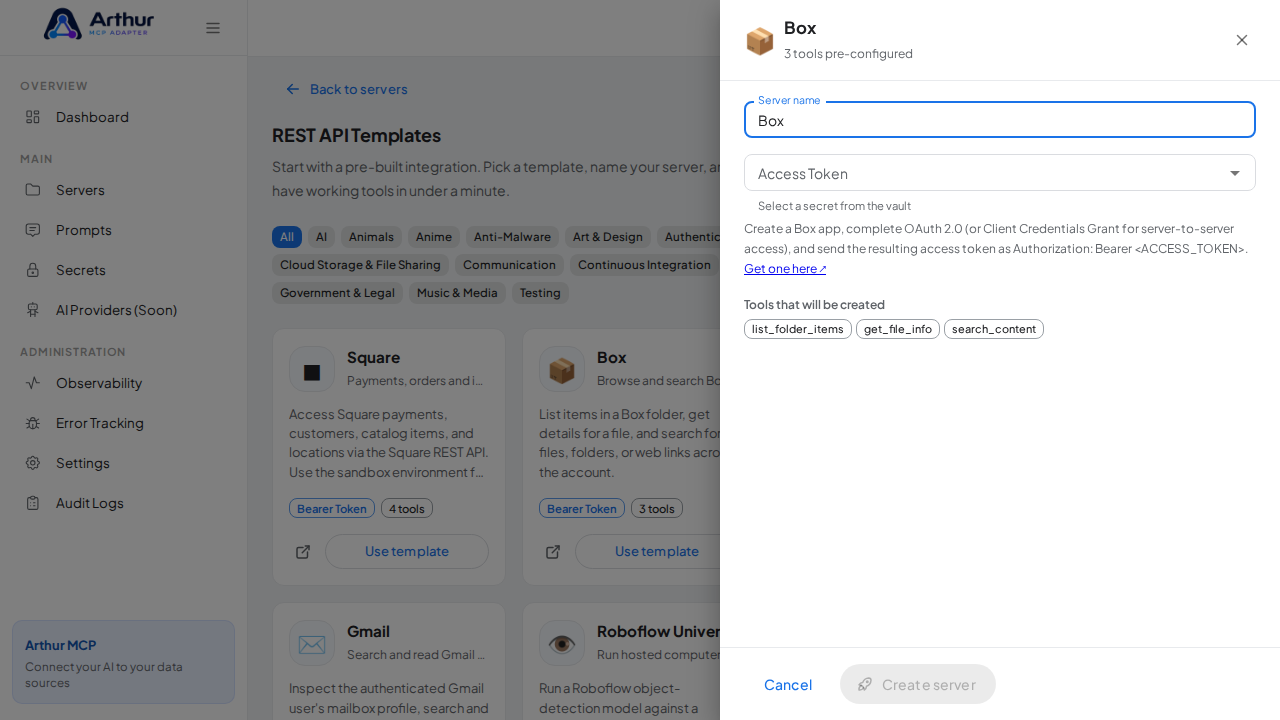

    Open the Box template with its preconfigured tools

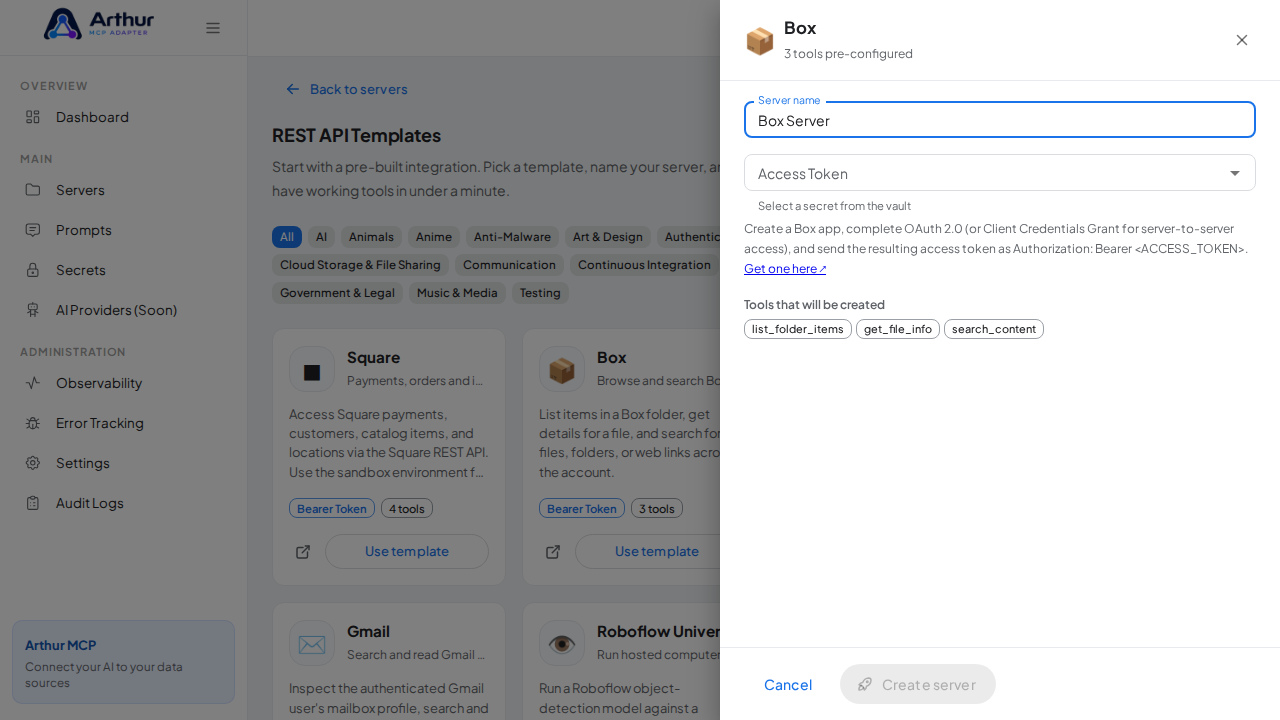

    Name the server after the integration it provides

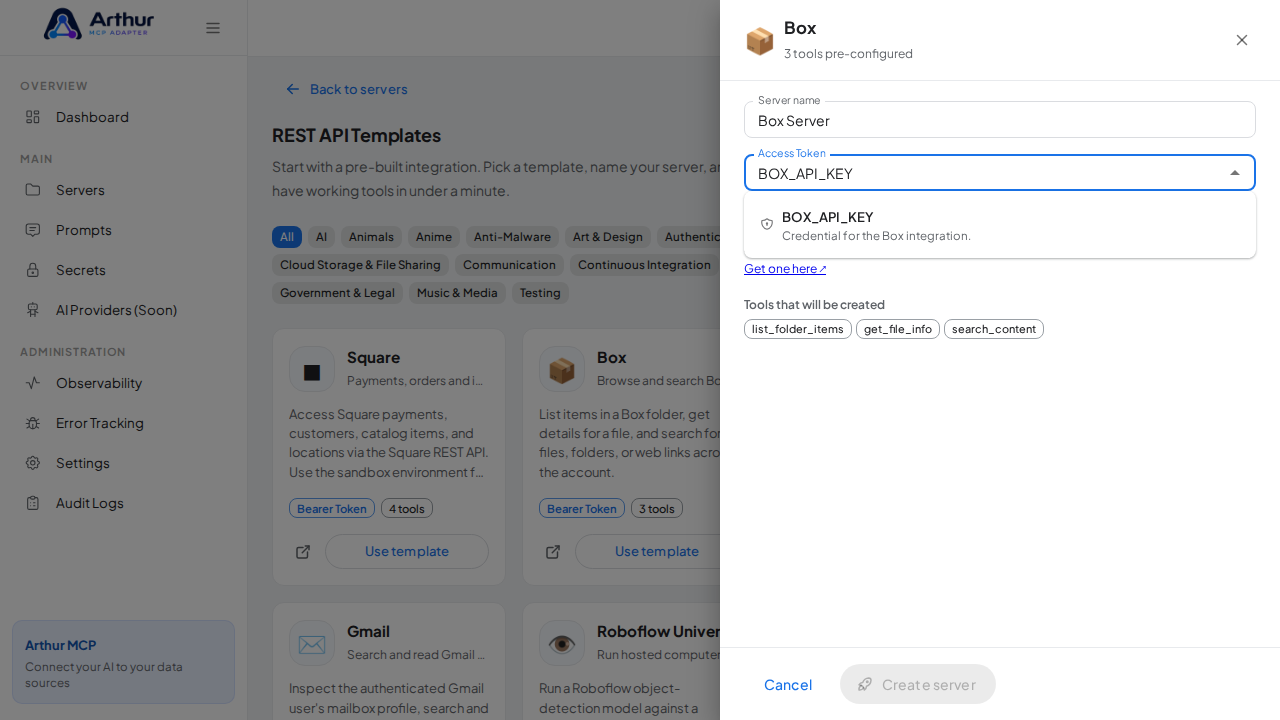

    Pick the BOXAPIKEY secret from the vault suggestions

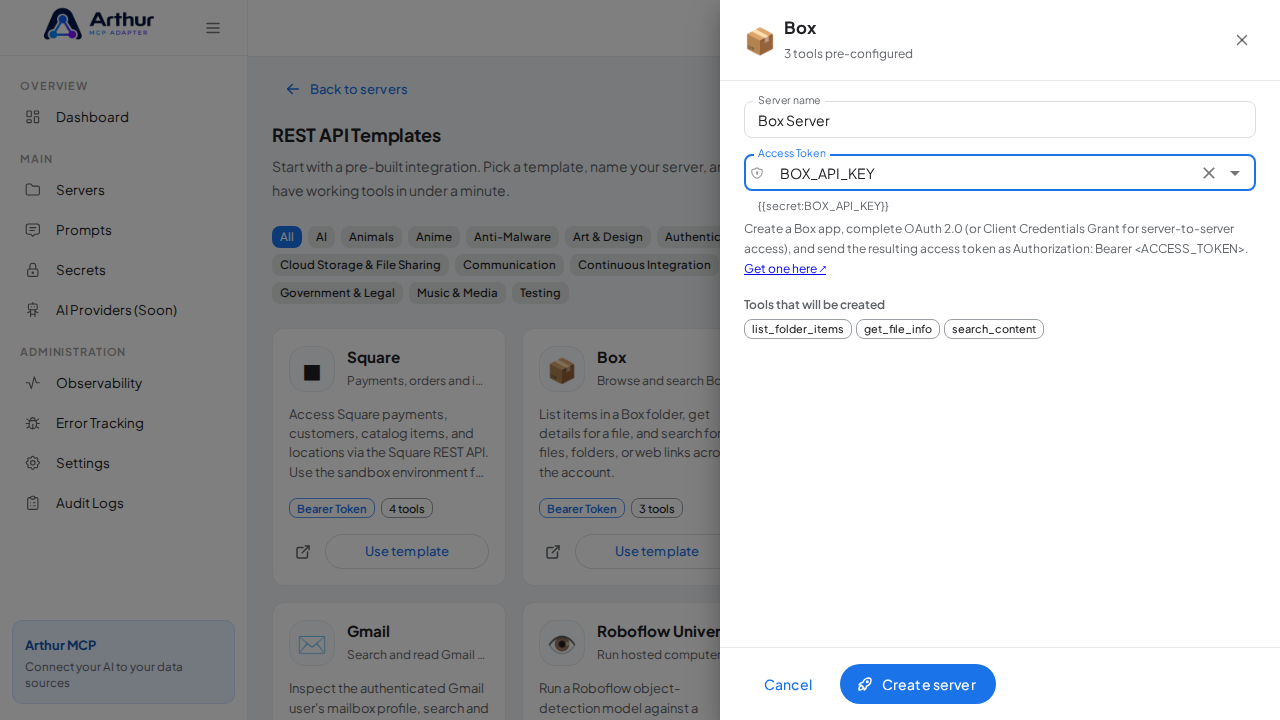

    Select the stored credential

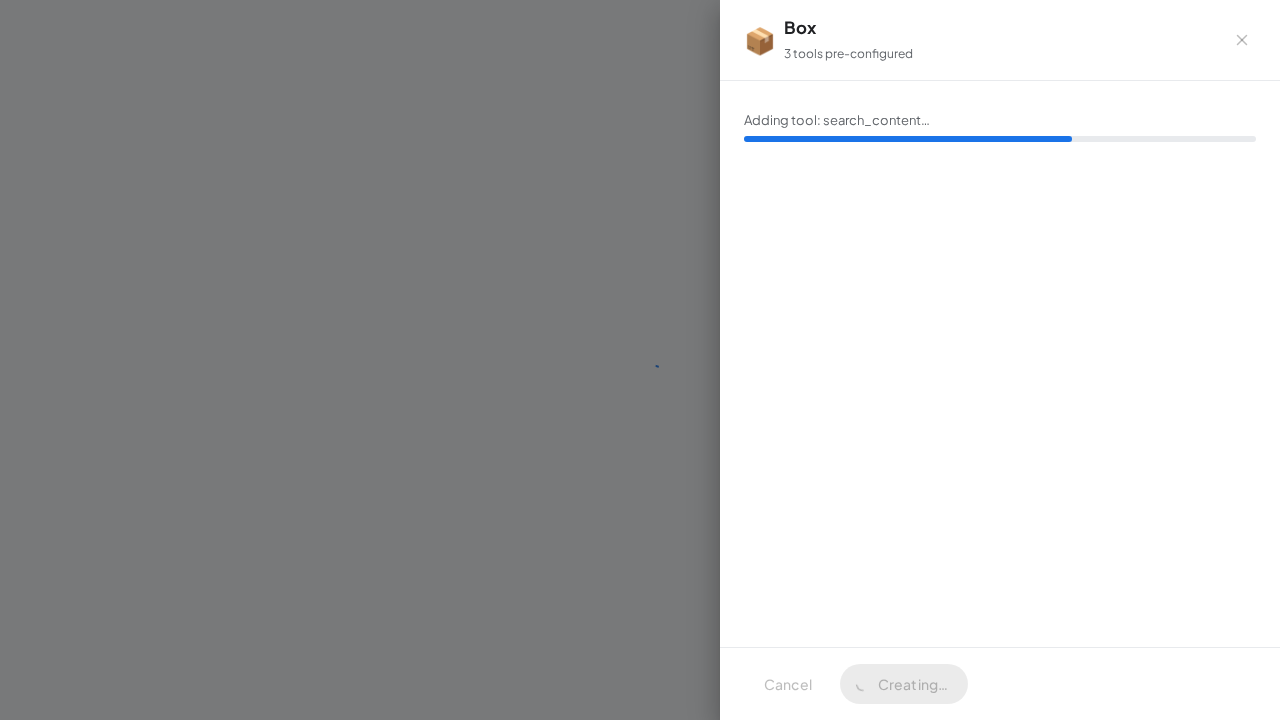

    Create the Box server with its preconfigured tools

  6. Open the server's Tools tab to review the generated tools.

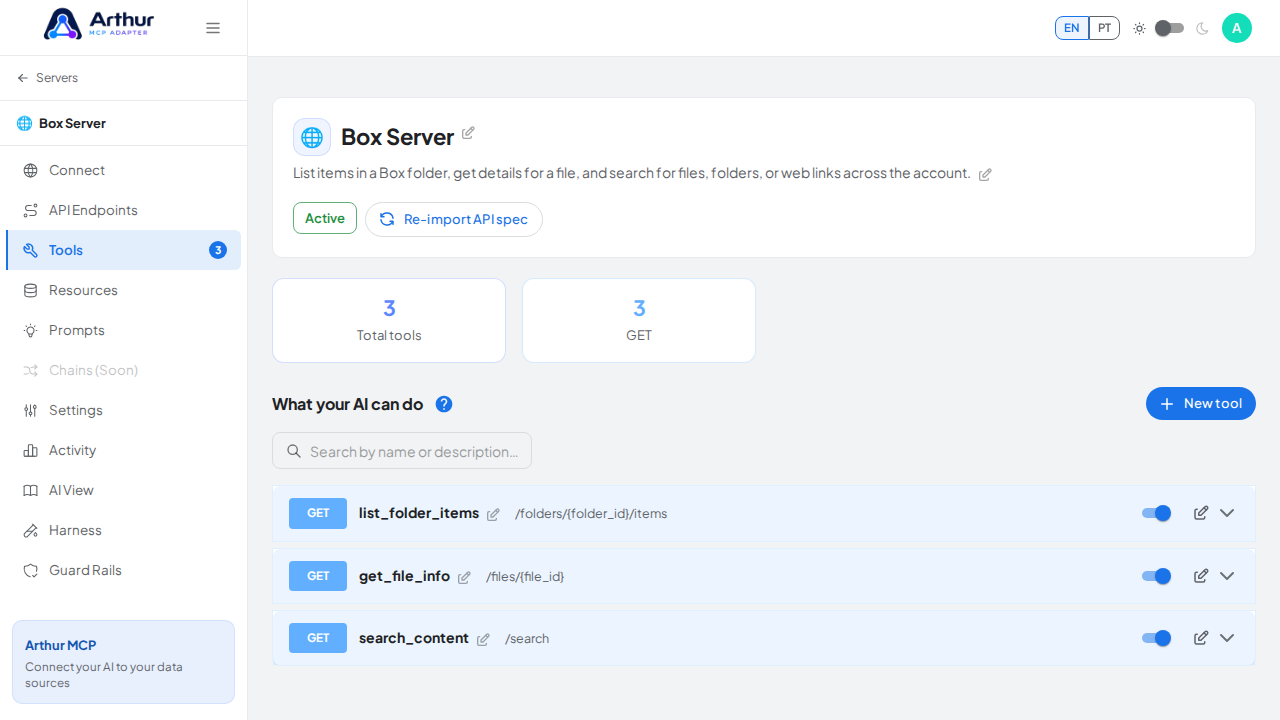

    Review the tools generated from the Box template

  7. Open the server's Connect section and click Share the MCP swagger documentation — Arthur generates the public documentation link and QR code for this server.

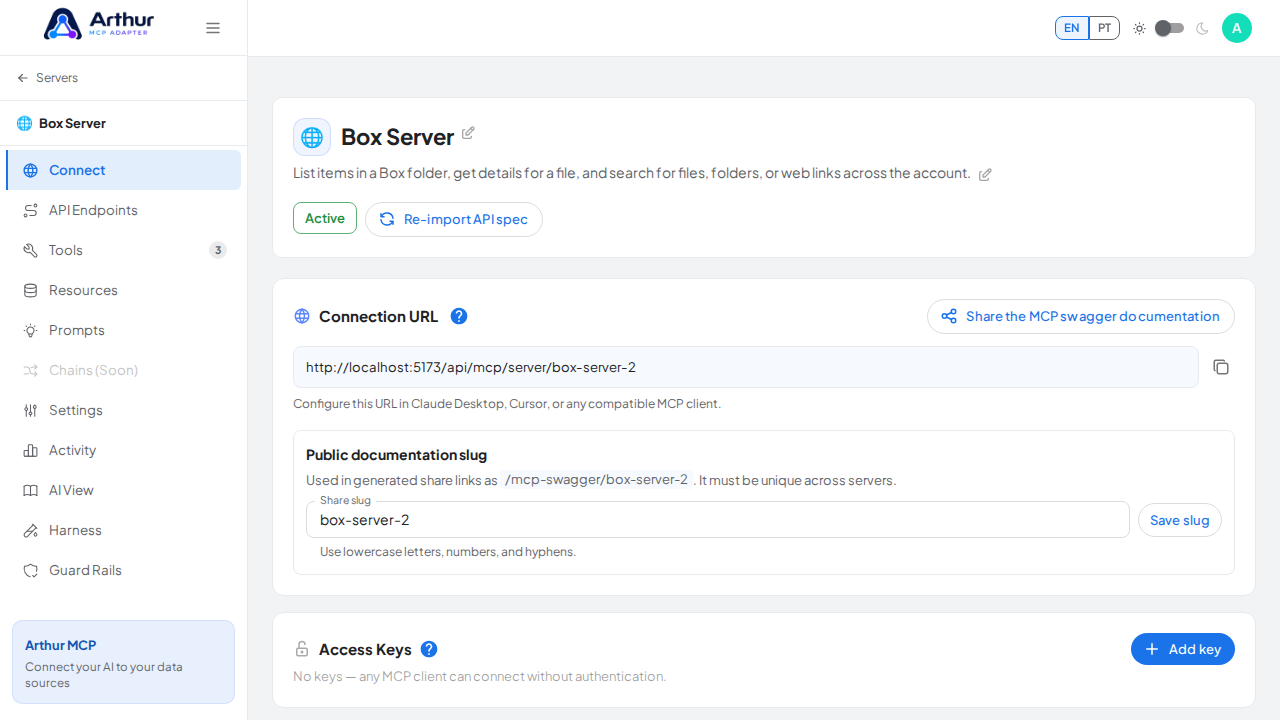

    Open the server's Connect section, where the MCP endpoint and its documentation live

    Open the MCP swagger documentation share panel

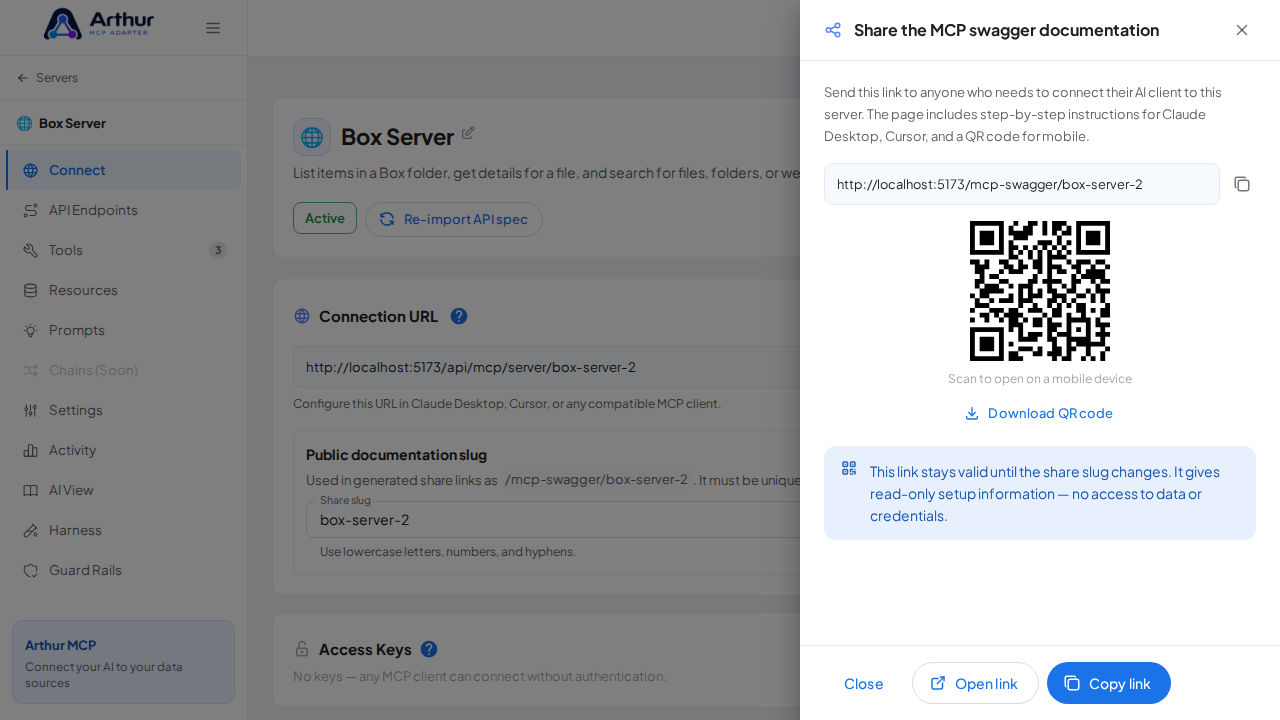

    Show the generated swagger documentation link and QR code for this server

Confirm it worked

The server appears with 3 preconfigured tool(s): list_folder_items, get_file_info, search_content. The Connect section offers the MCP swagger documentation — a shareable page with setup instructions for any AI client.

Good to know

  • List items in a Box folder, get details for a file, and search for files, folders, or web links across the account.
  • This integration requires a credential (bearer). Get one at https://account.box.com/signup/n/personal.
  • Official API documentation: https://developer.box.com/reference/
  • Editing a tool later never changes the template — templates are starting points, and the server is fully yours after creation.
