How to integrate DataJud using MCP

Brazilian court case metadata and procedural events. This guide creates an MCP server from Arthur's DataJud template — tools preconfigured against https://api-publica.datajud.cnj.jus.br — and finishes by sharing the server's MCP swagger documentation.

Steps

  1. Open the Secrets vault and create a secret named DATAJUD_API_KEY holding your API key. Copy the current public key from the CNJ DataJud access page and store the complete Authorization value, including the 'APIKey ' prefix. CNJ may rotate this key at any time.

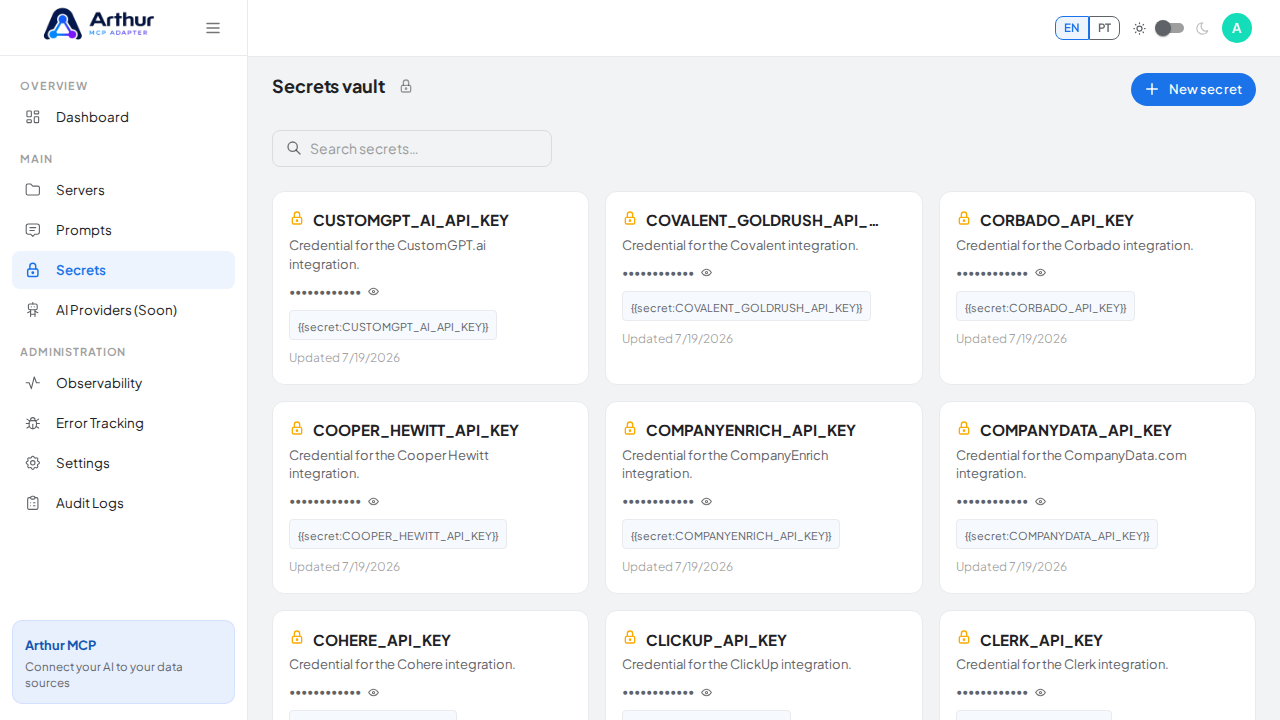

    Open the Secrets vault to store the DataJud credential before using the template

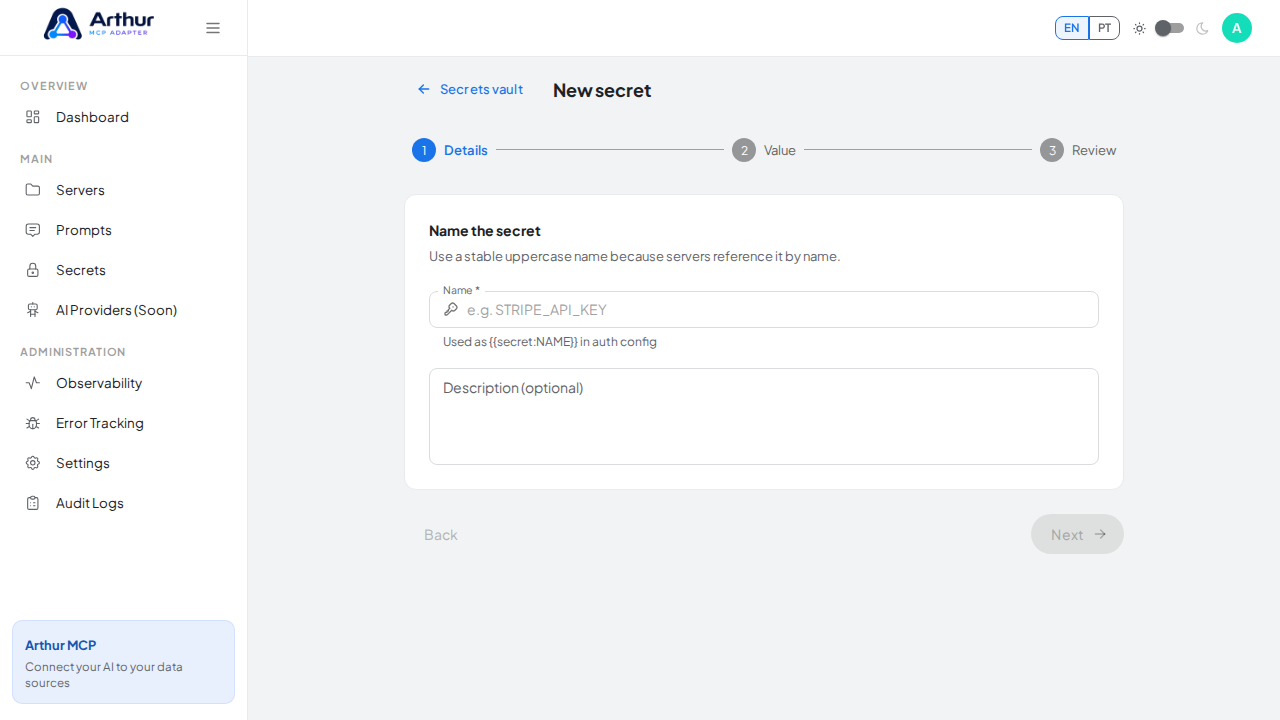

    Start the New secret wizard

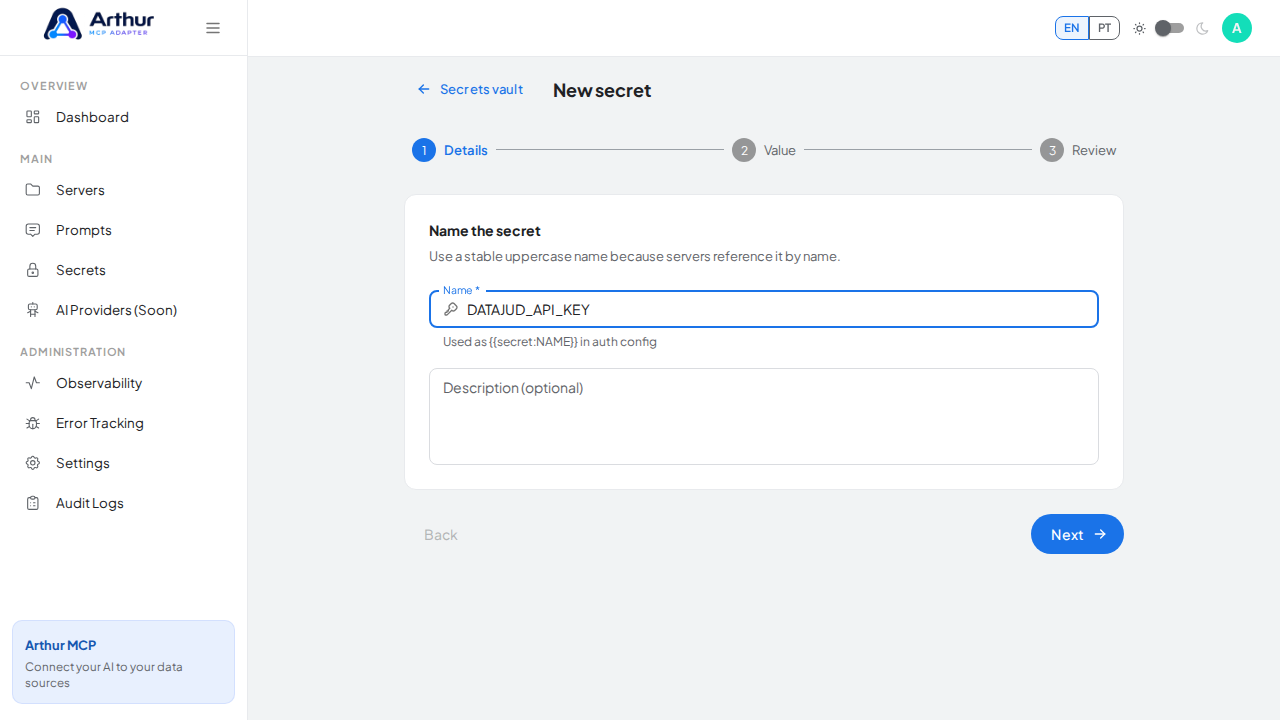

    Name the secret DATAJUDAPIKEY — servers reference it by this name

  2. Go to the REST API Templates gallery and search for DataJud.

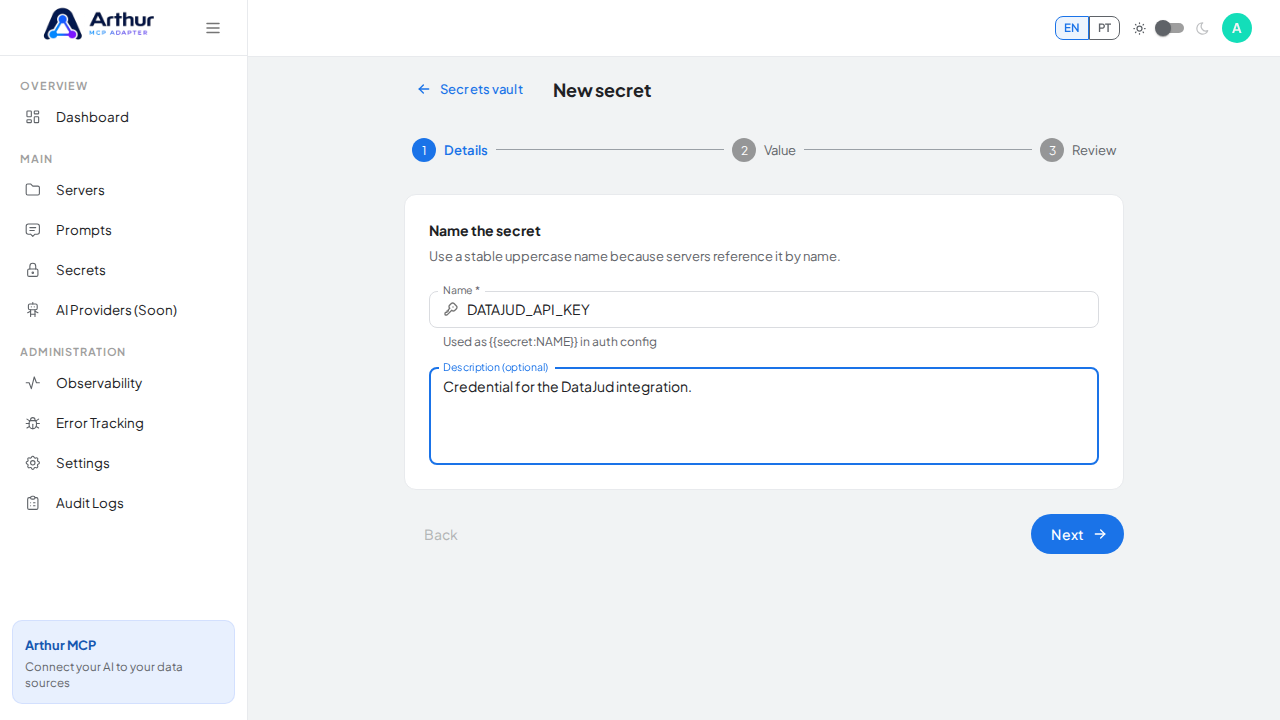

    Record what the credential is for so it stays recognizable

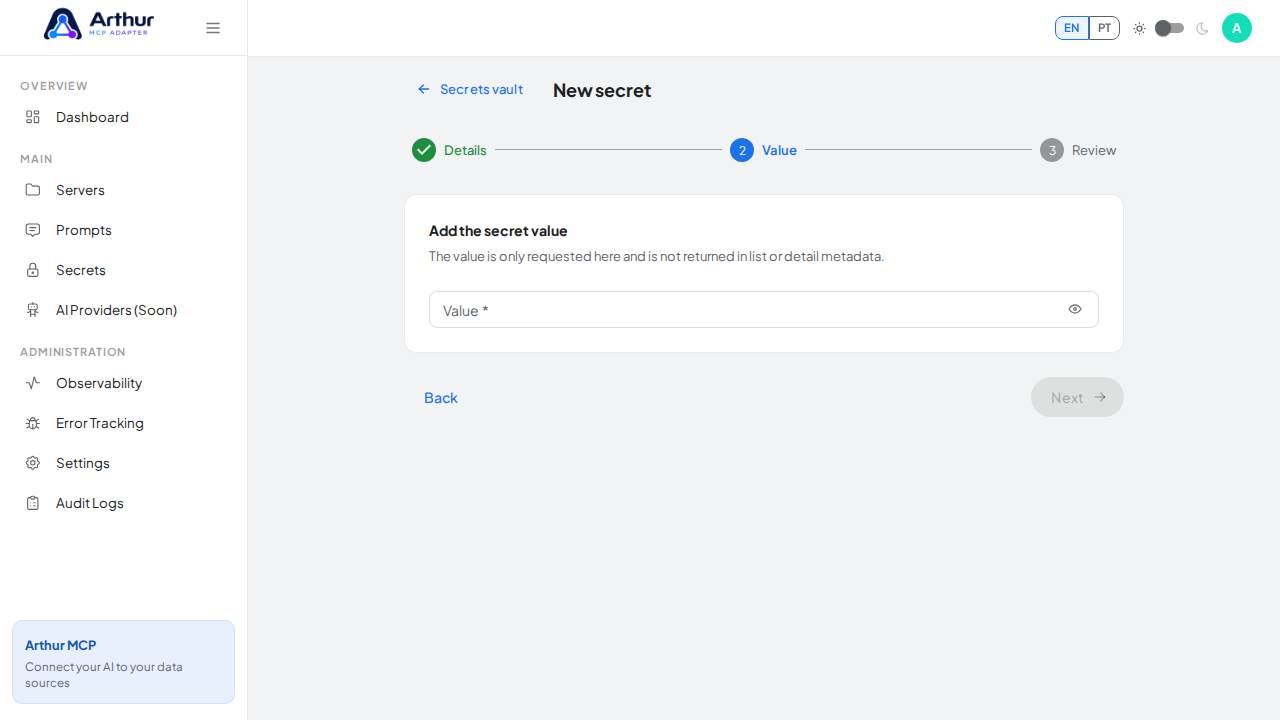

    Continue to the protected value step

  3. Click Use template on the DataJud card to open the server-creation dialog.

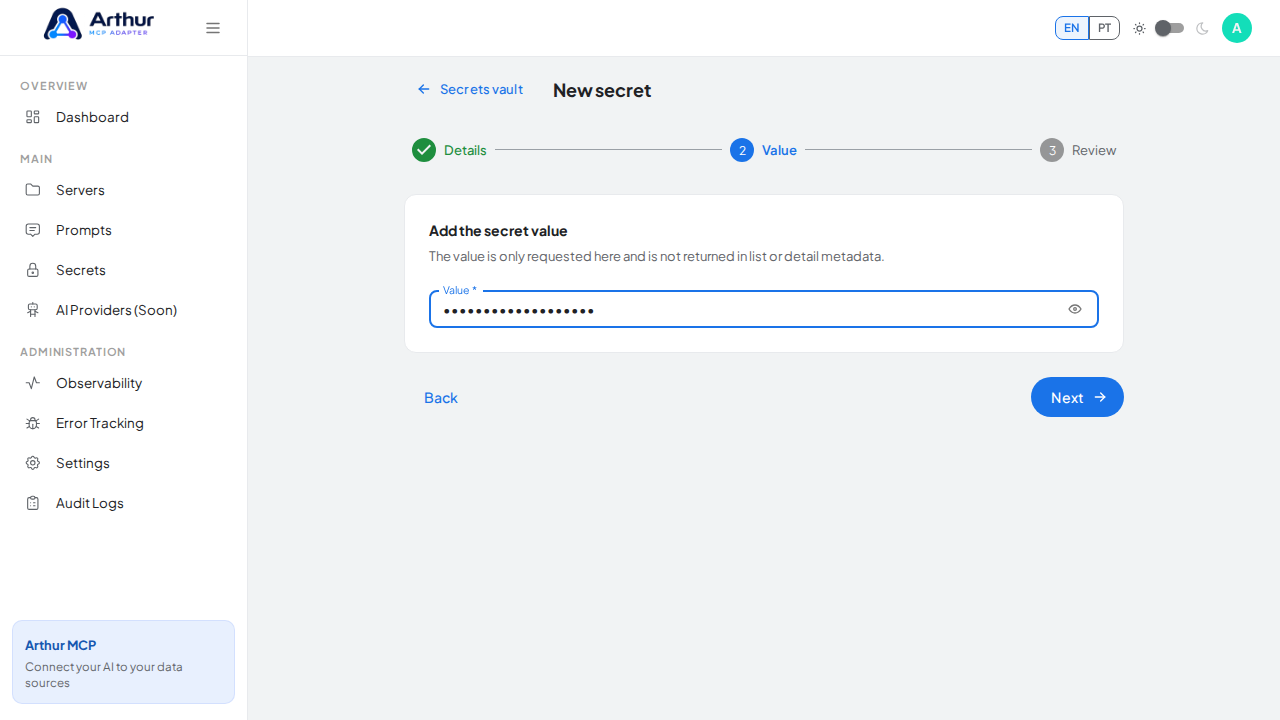

    Enter the credential value — a demo value here; use your real key when adopting the integration

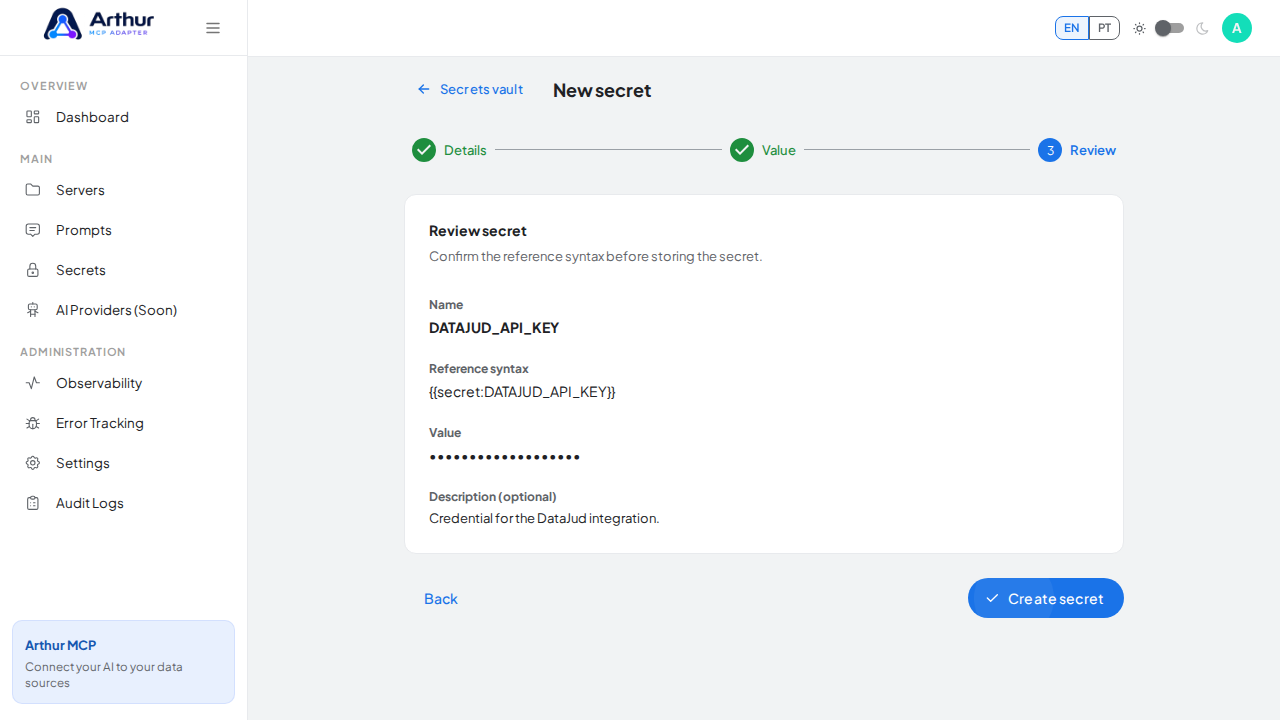

    Review the generated secret reference syntax

  4. Review the server name and select DATAJUD_API_KEY in the credential field — the dialog only accepts vault secrets, and it lists every tool that will be created.

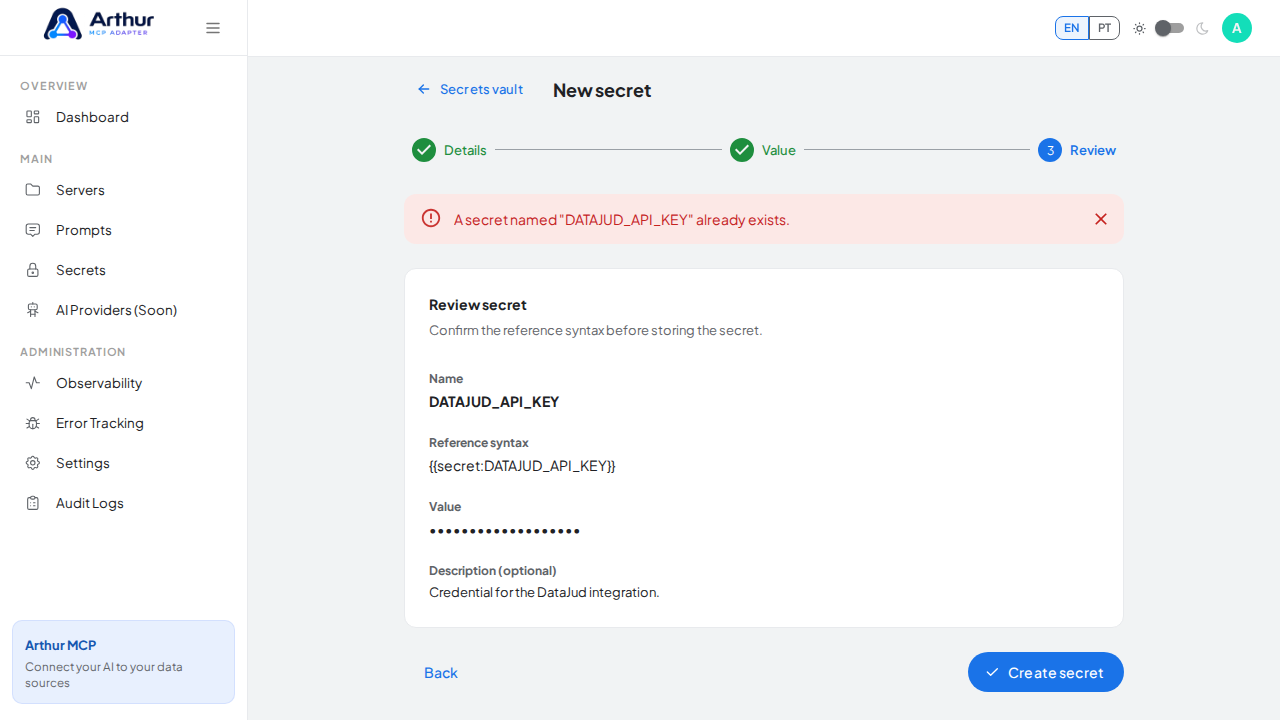

    Store the DATAJUDAPIKEY secret in the vault

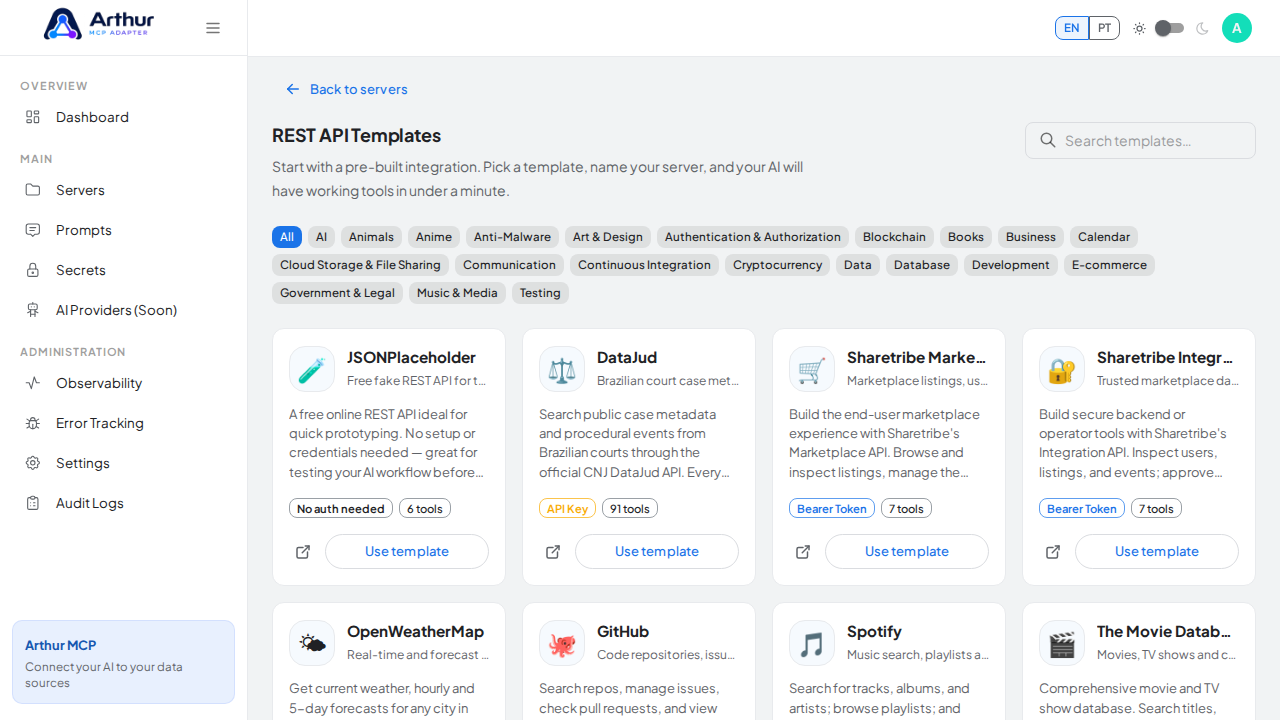

    Open the REST API template gallery

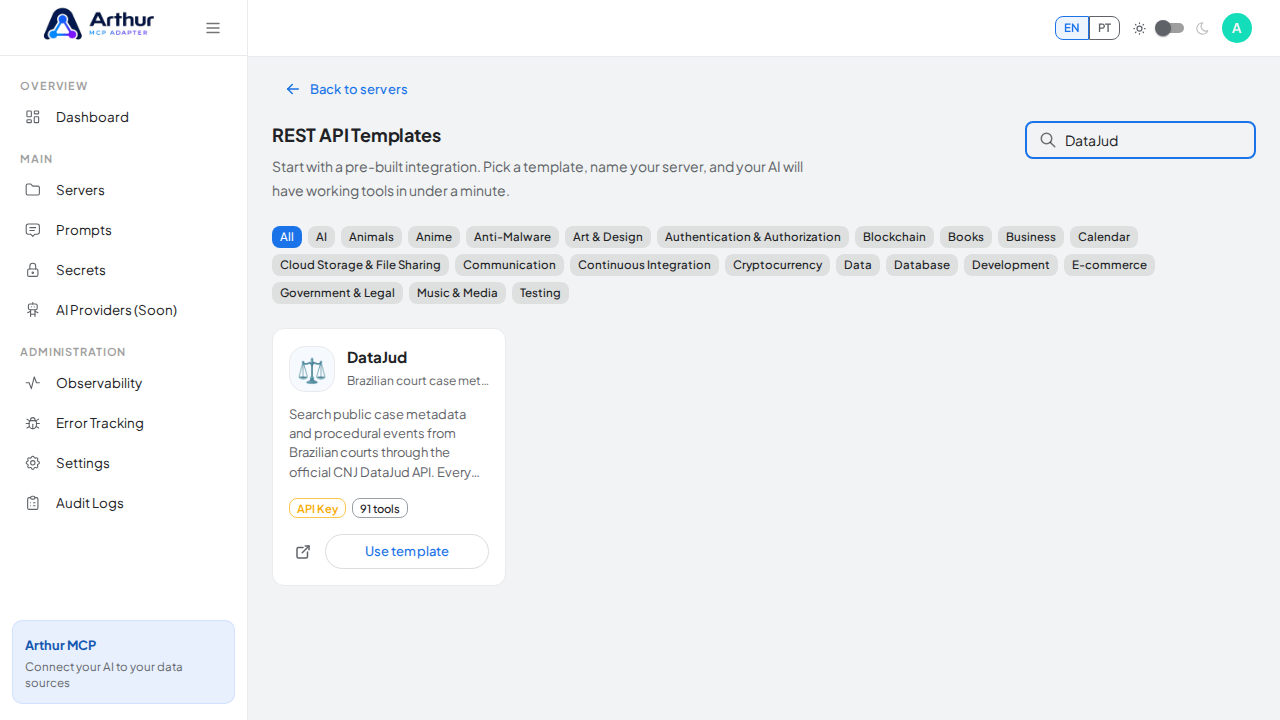

    Search the gallery for the DataJud integration

  5. Click Create server. Arthur creates the server, applies the authentication, and generates all the tools.

    Open the DataJud template with its preconfigured tools

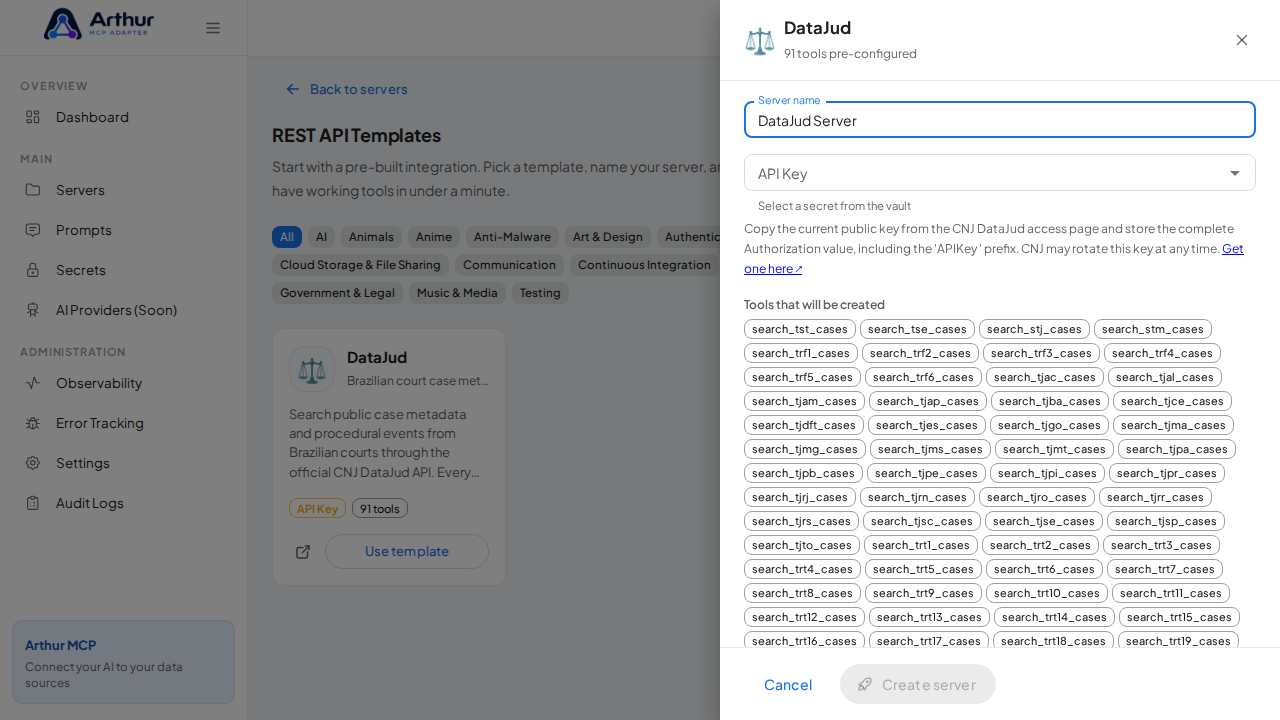

    Name the server after the integration it provides

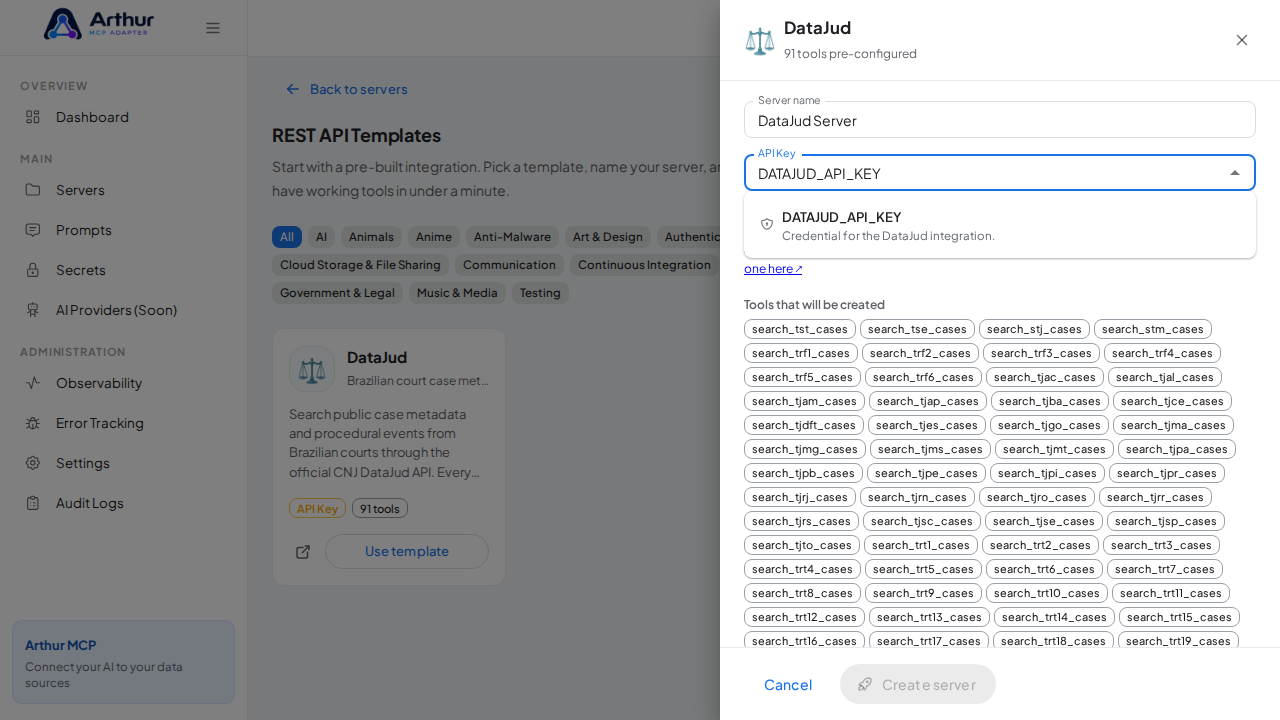

    Pick the DATAJUDAPIKEY secret from the vault suggestions

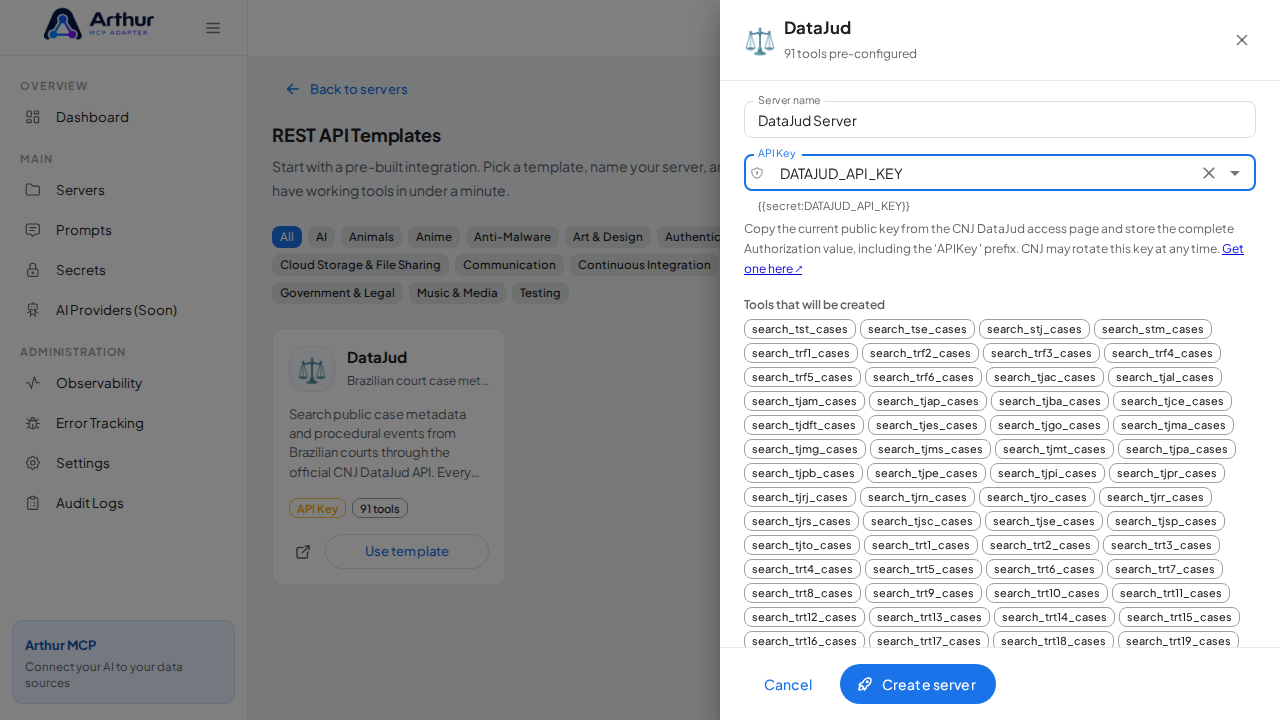

    Select the stored credential

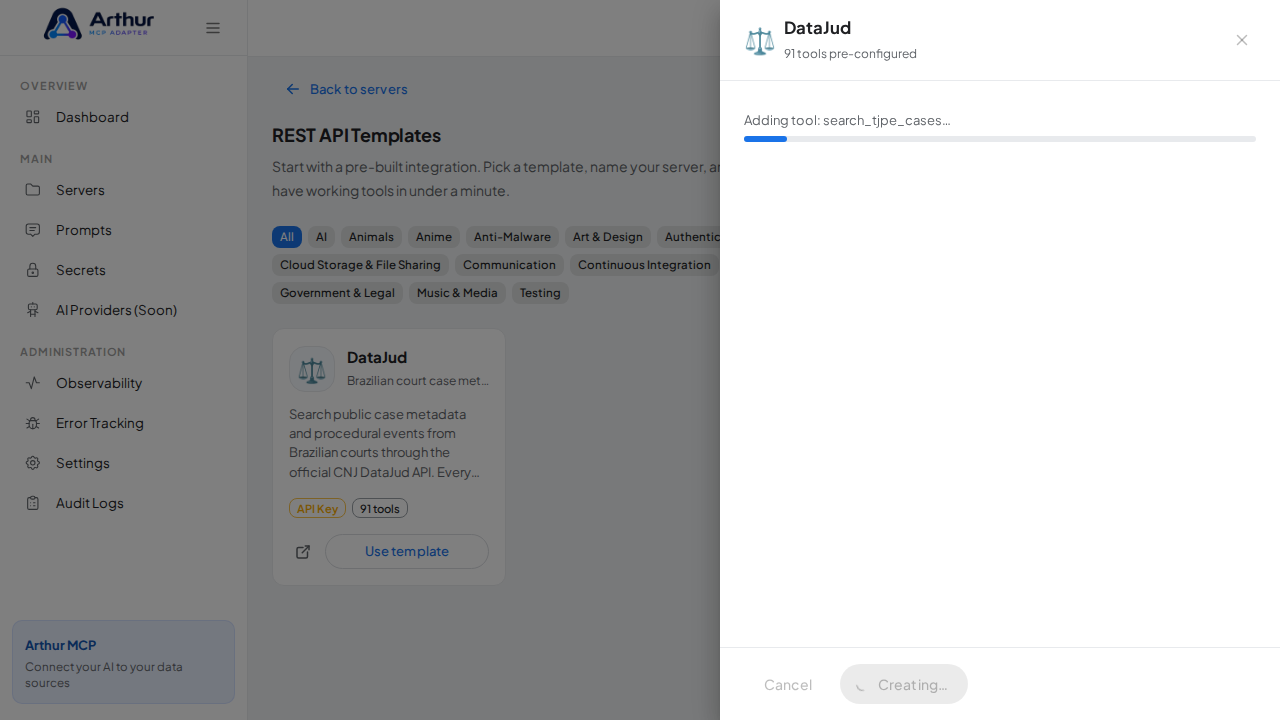

    Create the DataJud server with its preconfigured tools

  6. Open the server's Tools tab to review the generated tools.

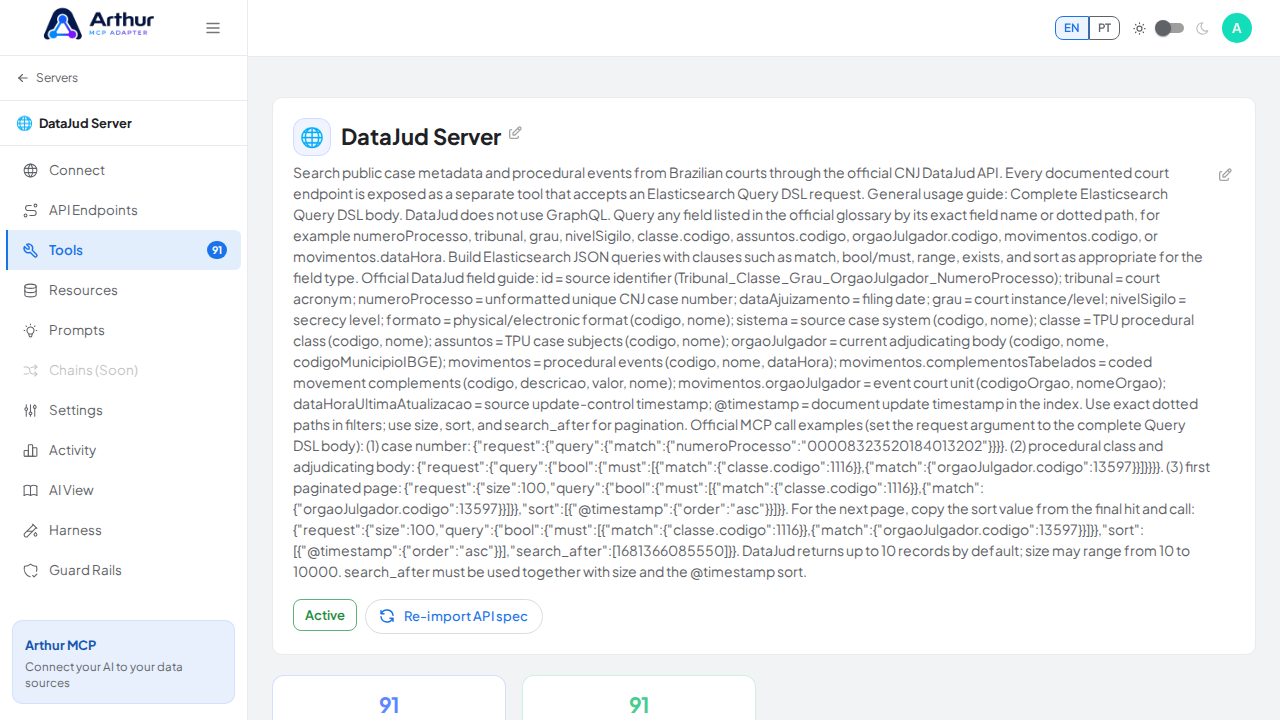

    Review the tools generated from the DataJud template

  7. Open the server's Connect section and click Share the MCP swagger documentation — Arthur generates the public documentation link and QR code for this server.

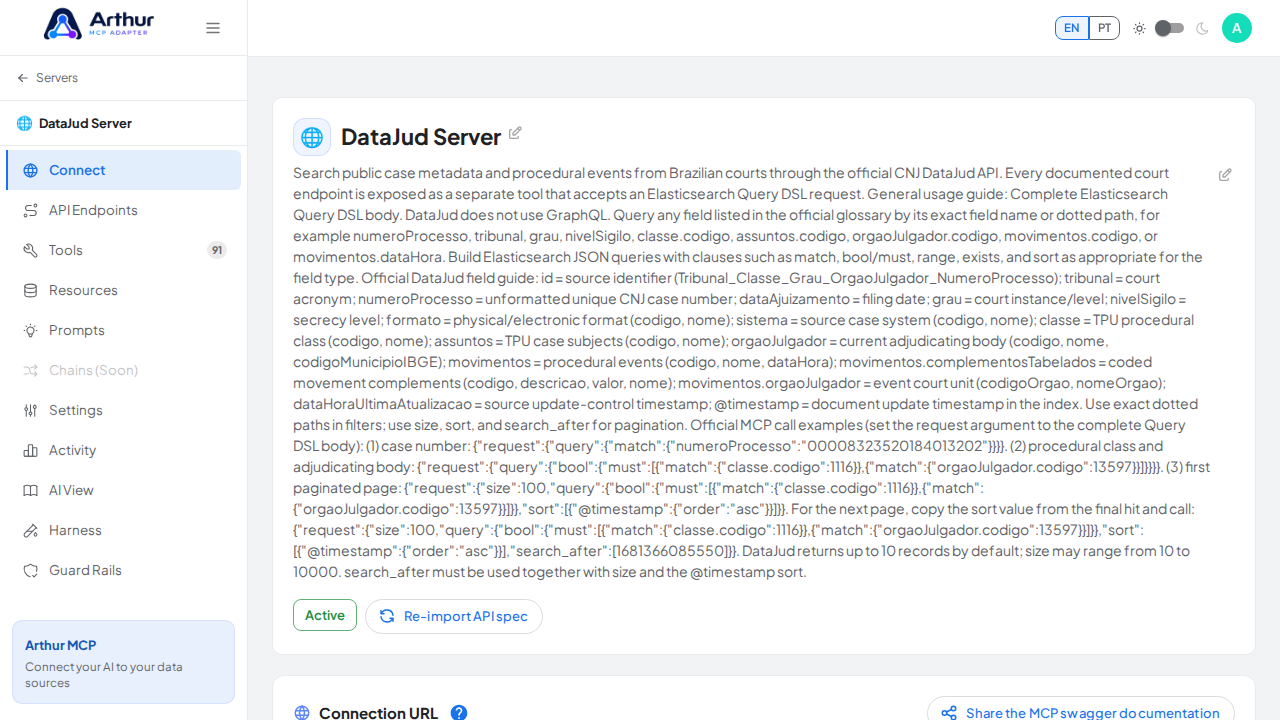

    Open the server's Connect section, where the MCP endpoint and its documentation live

    Open the MCP swagger documentation share panel

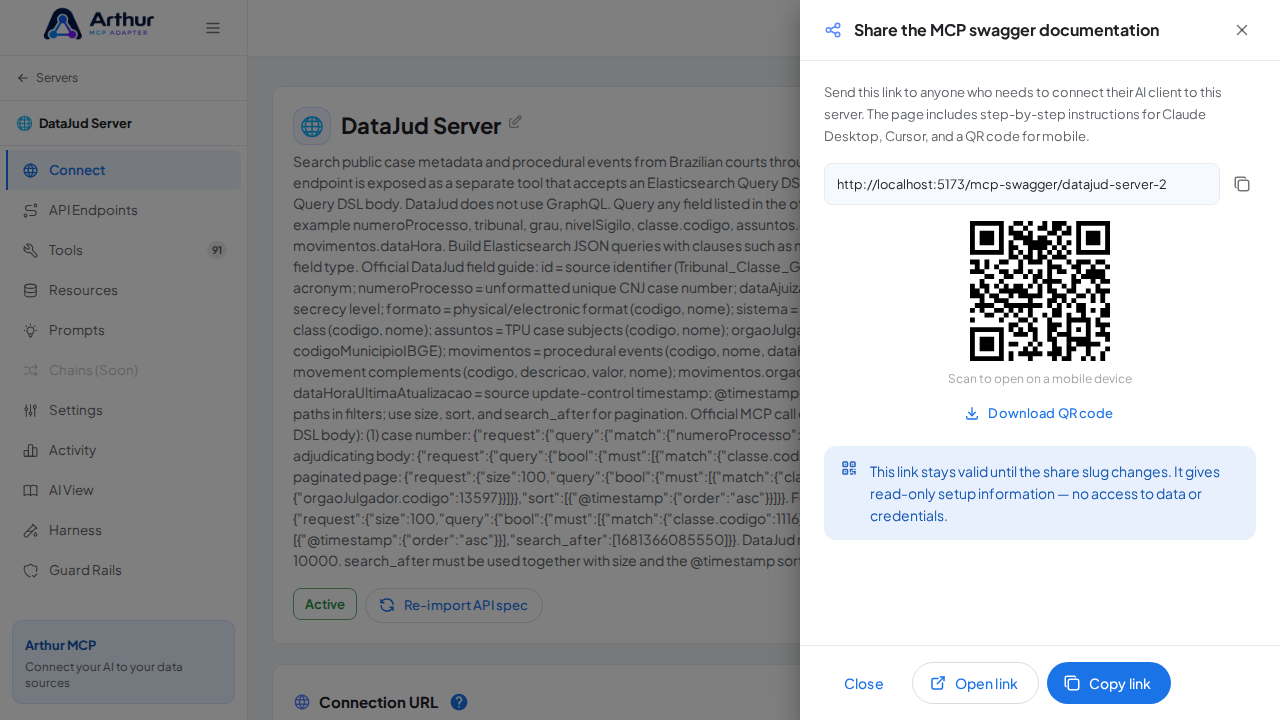

    Show the generated swagger documentation link and QR code for this server

Confirm it worked

The server appears with 91 preconfigured tool(s): search_tst_cases, search_tse_cases, search_stj_cases, search_stm_cases, search_trf1_cases, search_trf2_cases, search_trf3_cases, search_trf4_cases, search_trf5_cases, search_trf6_cases, search_tjac_cases, search_tjal_cases, search_tjam_cases, search_tjap_cases, search_tjba_cases, search_tjce_cases, search_tjdft_cases, search_tjes_cases, search_tjgo_cases, search_tjma_cases, search_tjmg_cases, search_tjms_cases, search_tjmt_cases, search_tjpa_cases, search_tjpb_cases, search_tjpe_cases, search_tjpi_cases, search_tjpr_cases, search_tjrj_cases, search_tjrn_cases, search_tjro_cases, search_tjrr_cases, search_tjrs_cases, search_tjsc_cases, search_tjse_cases, search_tjsp_cases, search_tjto_cases, search_trt1_cases, search_trt2_cases, search_trt3_cases, search_trt4_cases, search_trt5_cases, search_trt6_cases, search_trt7_cases, search_trt8_cases, search_trt9_cases, search_trt10_cases, search_trt11_cases, search_trt12_cases, search_trt13_cases, search_trt14_cases, search_trt15_cases, search_trt16_cases, search_trt17_cases, search_trt18_cases, search_trt19_cases, search_trt20_cases, search_trt21_cases, search_trt22_cases, search_trt23_cases, search_trt24_cases, search_tre_ac_cases, search_tre_al_cases, search_tre_am_cases, search_tre_ap_cases, search_tre_ba_cases, search_tre_ce_cases, search_tre_dft_cases, search_tre_es_cases, search_tre_go_cases, search_tre_ma_cases, search_tre_mg_cases, search_tre_ms_cases, search_tre_mt_cases, search_tre_pa_cases, search_tre_pb_cases, search_tre_pe_cases, search_tre_pi_cases, search_tre_pr_cases, search_tre_rj_cases, search_tre_rn_cases, search_tre_ro_cases, search_tre_rr_cases, search_tre_rs_cases, search_tre_sc_cases, search_tre_se_cases, search_tre_sp_cases, search_tre_to_cases, search_tjmmg_cases, search_tjmrs_cases, search_tjmsp_cases. The Connect section offers the MCP swagger documentation — a shareable page with setup instructions for any AI client.

Good to know

  • Search public case metadata and procedural events from Brazilian courts through the official CNJ DataJud API. Every documented court endpoint is exposed as a separate tool that accepts an Elasticsearch Query DSL request. General usage guide: Complete Elasticsearch Query DSL body. DataJud does not use GraphQL. Query any field listed in the official glossary by its exact field name or dotted path, for example numeroProcesso, tribunal, grau, nivelSigilo, classe.codigo, assuntos.codigo, orgaoJulgador.codigo, movimentos.codigo, or movimentos.dataHora. Build Elasticsearch JSON queries with clauses such as match, bool/must, range, exists, and sort as appropriate for the field type. Official DataJud field guide: id = source identifier (Tribunal_Classe_Grau_OrgaoJulgador_NumeroProcesso); tribunal = court acronym; numeroProcesso = unformatted unique CNJ case number; dataAjuizamento = filing date; grau = court instance/level; nivelSigilo = secrecy level; formato = physical/electronic format (codigo, nome); sistema = source case system (codigo, nome); classe = TPU procedural class (codigo, nome); assuntos = TPU case subjects (codigo, nome); orgaoJulgador = current adjudicating body (codigo, nome, codigoMunicipioIBGE); movimentos = procedural events (codigo, nome, dataHora); movimentos.complementosTabelados = coded movement complements (codigo, descricao, valor, nome); movimentos.orgaoJulgador = event court unit (codigoOrgao, nomeOrgao); dataHoraUltimaAtualizacao = source update-control timestamp; @timestamp = document update timestamp in the index. Use exact dotted paths in filters; use size, sort, and search_after for pagination. Official MCP call examples (set the request argument to the complete Query DSL body): (1) case number: {"request":{"query":{"match":{"numeroProcesso":"00008323520184013202"}}}}. (2) procedural class and adjudicating body: {"request":{"query":{"bool":{"must":[{"match":{"classe.codigo":1116}},{"match":{"orgaoJulgador.codigo":13597}}]}}}}. (3) first paginated page: {"request":{"size":100,"query":{"bool":{"must":[{"match":{"classe.codigo":1116}},{"match":{"orgaoJulgador.codigo":13597}}]}},"sort":[{"@timestamp":{"order":"asc"}}]}}. For the next page, copy the sort value from the final hit and call: {"request":{"size":100,"query":{"bool":{"must":[{"match":{"classe.codigo":1116}},{"match":{"orgaoJulgador.codigo":13597}}]}},"sort":[{"@timestamp":{"order":"asc"}}],"search_after":[1681366085550]}}. DataJud returns up to 10 records by default; size may range from 10 to 10000. search_after must be used together with size and the @timestamp sort.
  • This integration requires a credential (api-key). Get one at https://datajud-wiki.cnj.jus.br/api-publica/acesso/.
  • Official API documentation: https://datajud-wiki.cnj.jus.br/api-publica/
  • Editing a tool later never changes the template — templates are starting points, and the server is fully yours after creation.
